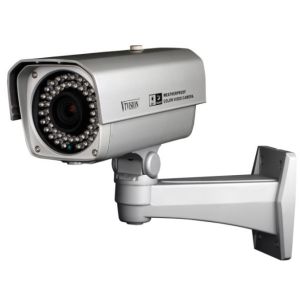

CMOS ICR Home H.264 Megapixel Network Camera 1080P 2 M Internet IP Kamera Surveillance Systems 100db
Main Feature
1. 1/2.8 inch 2M Sony ExmorCMOS low illumination sensor；
2. ARM9 framework,embedded SOC System；
3. Resolution: 1080P@30fps；
4. Support WDR,BLC and image flip
5. Support 3D noise reduction,de-interlace,image enhancement,Edge Enhancement,Gamma adjustment；
6. 3.5-16mm korea HD varifocal ICR lens
7. 50m IR distance；
8. Support H.264 BaseLine Profile / Main Profile；
9. Support dual-stream transmission, second-stream D1@30FPS
10.Support IOS/Android/WindowsMobile view and control；
11. Support electronic amplification and electronic drag；
12. Support Dual-core backup
13. Support video motion detection(VMD)
14. Support DHCP,PPPOE,UPnP,DDNS；
15. Support NFS protocol ,FTP download；
16. IP66；
SPECIFICATIONS
| Model | HKS-31336HVC |
| Image sensor | 2MP, 1/2.8" Sony ExmorCMOS sensor |
| core processor | ARM9 Architecture processor |
| operating system | Embedded LINUX |
| Effective Pixels | 2M |
| Image resolution | Main stream: 1080P(1920*1080); Second stream:D1(704*576) |
| Framerate | PAL: 1080P@25 F/S NTSC: 1080P@30 F/S |
| WDR | 100db |
| Electronic Shutter | 1/25S～1/10000S |
| Mini. Illumination | Color0.05 Lux @(F1.2, AGC ON) B/W0.01Lux @(F1.2, AGC ON); 0 Lux with IR |
| Aperture | DC drive |
| Day/Night | ICR |
| Videoparameters | Contrast, brightness, saturation can be adjusted independently |
| Image processing | Support 3D noise reduction, de-interlace, image enhancement, edge enhancement, backlight compensation, gamma adjustment |
| Lens | 3.5-16mm korea varifocal ICR lens |
| IR | 36PCS |
| IR distance | 50M |
| Network Port | 10/100MEthernet interface RJ45 |
| Protocol | Onvif |
| Video Compression | H.264/MJPEG |
| Encode type | BaseLine Profile/ Main Profile |
| Video Compression code reate | 32K~8Mbps |
| IE browser | Web server |
| Mobile | Support IOS/Android/WindowsMobile |
| Client | ≤8 |
| Network protocol | TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/RTP/RTSP |
| IP address | Support static state IP address,DDNS |
| OSD charactor | Support character, time,support max 128 charactors |
| Authority | 4 level,128 users |
| System clock | Build-in clock, support external synchronization |
| Remote mamagement | Remote network upgrade |
| Intelligent alarm | Motion detection |
| Operating Environment | -30℃～60℃, 0～95% RHG |
| Power Supply | DC 12V±10% |
| Dimension | 310mm * 225mm * 100mm |
| Weight | 1800g |
DIMENSIONS & PACKING DETAILS
Dimension :310mmx225mmx100mm
Weight : 1800g
Carton Size : 670mmx330mmx550mm
Qty Of Package : 10 PCS / CTN
